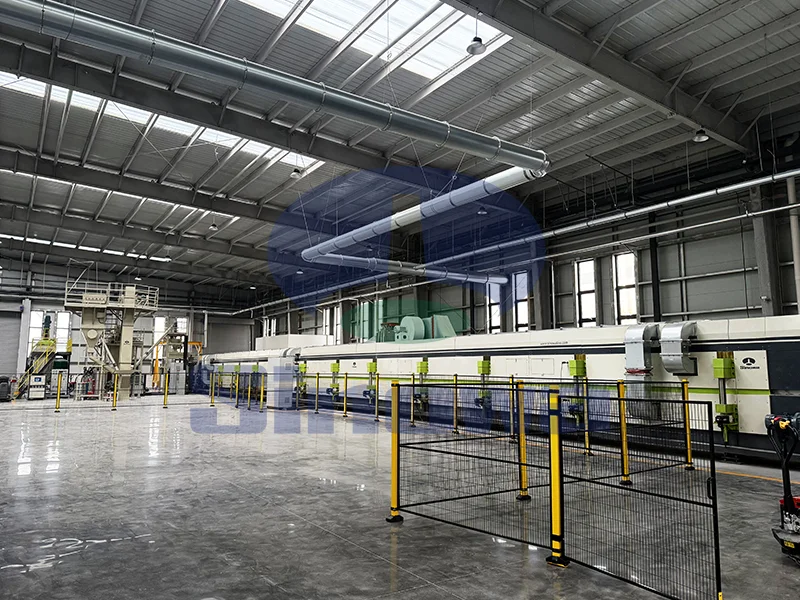

PU Sandwich Panel Line

Sinowa is pu sandwich panel line manufacturer from china, dedicated to the research and development of high-end and high-efficiency, Sinowa is comprehensively taking the leading position in terms of efficiency, automation control level, HMI, environment protection and energy consumption, with subversive designs made in some critical technological fields to procure exceptional cost performance and customer-friendly experience for the entire pu sandwich panel line. The adoption of system integration technology and bus control technology accomplishes the full automatization of integrated and coordinated control of the entire pu sandwich panel line with accessible remote interactive communication. Ranking the first-class level in the world, it is currently the pu sandwich panel line in the market taking a comprehensive lead in high performance.

In the realm of modern construction and industrial manufacturing, the demand for materials that balance performance, efficiency, and sustainability has driven significant advancements in production technology. Among these innovations, the PU (Polyurethane) sandwich panel line stands out as a cornerstone of efficient, high-quality composite panel manufacturing. PU sandwich panels, characterized by a rigid polyurethane foam core bonded between two outer facings—typically metal sheets such as steel or aluminum—have become indispensable in a wide range of applications due to their exceptional thermal insulation, structural strength, and lightweight properties. The production line that manufactures these panels is a sophisticated integration of mechanical engineering, chemical processing, and automated control systems, designed to deliver consistent, high-volume output while maintaining strict quality standards.

Core Components of the PU Sandwich Panel Line

A fully functional PU sandwich panel line is a modular system composed of several key components, each playing a critical role in the sequential manufacturing process. These components are engineered to work in harmony, ensuring a seamless flow from raw material input to finished product output. While configurations may vary slightly based on specific production requirements, the fundamental components remain consistent across most modern lines.

The uncoiling and feeding system is the starting point of the production process. This system consists of decoilers—one for each outer facing material (usually metal coils)—equipped with tension control mechanisms. The decoilers unwind the metal coils smoothly, preventing material damage or deformation, and feed the flat metal sheets into the subsequent processing stages. Tension control is crucial here, as inconsistent tension can lead to uneven sheet feeding, which ultimately affects the precision of the final panel. Some advanced systems also include coil straightening devices to correct any curvature in the metal sheets, ensuring a flat, uniform base for further processing.

Next is the roll forming system, which shapes the flat metal sheets into the desired profiles. This system comprises a series of tandem rolling stands, each fitted with precision-engineered rollers that gradually bend the metal sheets into specific cross-sectional shapes—such as corrugated, trapezoidal, or ribbed profiles—depending on the application of the final panel. The progressive bending process ensures that the metal retains its structural integrity while achieving the required profile, avoiding sudden stress concentrations that could weaken the material. The roll forming system is highly customizable, allowing manufacturers to produce panels with different profile designs to meet the diverse needs of construction projects, from industrial roofing to cold storage walls.

The PU foam injection system is the heart of the production line, responsible for creating the insulating core of the sandwich panel. This system consists of a high-pressure foaming machine, chemical mixing units, and injection nozzles. The key function here is the precise metering and mixing of polyurethane raw materials—typically polyol and isocyanate—along with additives such as foaming agents, flame retardants, and catalysts. These materials are mixed under high pressure to ensure a homogeneous reaction, which is essential for the formation of a high-quality foam core with consistent density and insulation properties. The foaming agents used in modern systems are increasingly eco-friendly, replacing traditional chloroform-based agents with alternatives like pentane or 141b, aligning with global sustainability goals. The mixed liquid polyurethane is then continuously injected between the two profiled metal sheets as they move through the line.

The cooling and curing system follows the injection stage, facilitating the expansion and solidification of the PU foam. This system typically employs a double-belt conveyor, which consists of two parallel, continuous belts that clamp the sandwich structure—metal sheets and injected foam—together as it moves forward. The belts not only maintain the flatness of the panel but also apply uniform pressure, ensuring proper bonding between the foam core and the metal facings. The cooling process is achieved through forced air cooling or water-cooled belts, which control the temperature of the panel to optimize the foam curing reaction. Curing is a critical step: insufficient curing can lead to weak bonding between the core and facings, while over-curing may cause the foam to become brittle. Modern lines use temperature sensors and automated control systems to maintain the ideal curing temperature throughout the process.

The final key component is the cutting and stacking system. Once the foam has fully cured and the sandwich panel has stabilized, the panel is fed into an automatic cutting machine—usually a circular saw or a traveling saw—that cuts the continuous panel into fixed lengths based on customer specifications. The cutting machine is synchronized with the line speed to ensure precise, clean cuts without damaging the panel edges. After cutting, the finished panels are conveyed to a stacking system, which arranges them neatly for storage or transportation. Some advanced lines also integrate additional inline processes, such as punching, embossing, or surface coating, to enhance the functionality or aesthetics of the panels before stacking.

Complementing these core components is the central control system, which oversees the entire production process. Most modern PU sandwich panel lines use PLC (Programmable Logic Controller) systems with user-friendly human-machine interfaces (HMIs). The control system monitors and adjusts key parameters—such as line speed, foam injection rate, curing temperature, and cutting length—ensuring consistent production quality. It also provides real-time data on production output, material consumption, and system performance, enabling manufacturers to optimize efficiency and reduce waste.

Working Principles of the PU Sandwich Panel Line

The operation of a PU sandwich panel line is a continuous, automated process that integrates mechanical, chemical, and electrical systems to produce sandwich panels in a streamlined manner. Understanding the sequence of operations helps to appreciate the efficiency and precision of modern production lines.

The process begins with the preparation of raw materials: metal coils are loaded onto the decoilers, and the PU chemical components are checked and loaded into the foaming machine's storage tanks. The operator inputs the production parameters—such as panel thickness, profile design, foam density, and cut length—into the central control system, which then configures the respective components accordingly.

Once the system is initialized, the uncoiling system starts feeding the metal sheets into the roll forming system. The metal sheets pass through the series of rolling stands, where they are gradually shaped into the desired profiles. As the two profiled metal sheets move forward in parallel, maintaining a precise gap between them (equal to the desired thickness of the foam core), the PU foam injection system begins dispensing the mixed polyurethane materials into this gap. The injection is continuous and uniform, ensuring that the entire area between the metal sheets is filled with foam.

As the sandwich structure—consisting of two metal facings and the liquid PU core—moves into the cooling and curing zone, the foam begins to expand and react chemically. The double-belt conveyor clamps the structure tightly, preventing the expanding foam from causing the metal sheets to bulge or separate, and ensures that the foam core adheres firmly to the inner surfaces of the metal facings. The controlled cooling environment accelerates the curing process, transforming the liquid foam into a rigid, solid core with excellent thermal insulation and structural properties. The curing time varies depending on factors such as foam density, ambient temperature, and the type of additives used, but modern lines are designed to minimize this time while maintaining quality.

After the foam has fully cured, the continuous sandwich panel is fed into the cutting system, where it is cut into individual panels of the specified length. The cutting process is precise and fast, synchronized with the line speed to avoid any disruption to the production flow. The finished panels are then conveyed to the stacking area, where they are stacked automatically, ready for packaging or direct shipment to customers. Throughout the entire process, the central control system monitors all key parameters, making real-time adjustments to ensure consistency. For example, if the foam density deviates from the set value, the system adjusts the metering of the raw materials; if the line speed fluctuates, the cutting machine speed is adjusted accordingly.

One of the key advantages of this continuous process is its high efficiency. Unlike discontinuous, manual production methods, which are slow and prone to human error, modern PU sandwich panel lines can produce panels at high speeds—often up to several meters per minute—enabling mass production to meet large-scale construction demands. Additionally, the automation of the process ensures that each panel is identical in quality and dimensions, reducing waste and improving overall production yield.

Technical Advantages of Modern PU Sandwich Panel Lines

Modern PU sandwich panel lines offer a range of technical advantages that make them indispensable in today's manufacturing landscape. These advantages stem from advancements in automation, material science, and process control, and directly translate to improved product quality, higher efficiency, and reduced environmental impact.

Precision and consistency are among the most significant advantages. The integration of PLC control systems and precision-engineered components ensures that every parameter of the production process is tightly controlled. This results in sandwich panels with uniform foam density, consistent thickness, and precise profile dimensions. Uniform foam density is particularly important for thermal insulation performance, as variations can create "hot spots" in the panel, reducing its energy efficiency. Consistent panel dimensions, meanwhile, simplify installation, reducing on-site labor costs and ensuring a tight fit between panels.

High production efficiency is another key benefit. Automated, continuous production eliminates the downtime associated with manual processes, enabling manufacturers to produce large volumes of panels in a short period. This is especially important in the construction industry, where project timelines are often tight, and material supply needs to be timely. The high-speed production capability also allows manufacturers to scale their operations efficiently, meeting increasing market demand without significant increases in labor or production space.

Flexibility and customization are also hallmarks of modern PU sandwich panel lines. These lines can be easily reconfigured to produce panels of different sizes, thicknesses, and profile designs, simply by adjusting the roll forming rollers, foam injection parameters, and cutting length. This flexibility allows manufacturers to cater to a wide range of applications, from small-scale commercial buildings to large industrial facilities and cold storage units. Some advanced lines also support the use of different outer facing materials, such as aluminum or stainless steel, in addition to standard steel, further expanding their application scope.

Environmental sustainability has become a key focus in modern manufacturing, and PU sandwich panel lines have evolved to meet this demand. The use of eco-friendly foaming agents reduces the environmental impact of the production process, minimizing the release of harmful greenhouse gases. Additionally, the efficient use of raw materials—enabled by precise metering and process control—reduces waste, while the lightweight nature of the final panels reduces transportation emissions, as more panels can be transported in a single shipment. Many PU sandwich panels are also recyclable, further enhancing their sustainability profile.

Improved worker safety is another advantage of modern lines. The automation of most processes reduces the need for manual intervention, minimizing the risk of accidents associated with handling heavy metal coils or working with chemical materials. The high-pressure foaming systems are enclosed, preventing exposure to raw materials, and dust collection devices are often integrated to maintain a clean working environment. The user-friendly control systems also reduce the risk of human error, further enhancing workplace safety.

Diverse Applications of PU Sandwich Panels and the Role of Production Lines

The versatility of PU sandwich panels—driven by their excellent thermal insulation, lightweight, durability, and customizable properties—has led to their widespread adoption across multiple industries. The PU sandwich panel line plays a critical role in enabling this versatility, as it can produce panels tailored to the specific requirements of each application.

The construction industry is the largest consumer of PU sandwich panels, with applications ranging from industrial and commercial buildings to residential structures. In industrial settings, such as factories and warehouses, PU sandwich panels are used for roofing and wall cladding due to their high strength-to-weight ratio and thermal insulation properties. The lightweight panels reduce the load on the building's foundation, while the insulation helps maintain stable indoor temperatures, reducing energy consumption for heating and cooling. In commercial buildings, such as shopping malls, office complexes, and quick-service restaurants, the customizable aesthetics of the panels—including a range of colors and surface finishes—make them a popular choice for exterior cladding, while their sound insulation properties help create a comfortable indoor environment.

Cold storage and refrigeration facilities represent another key application area. PU foam has extremely low thermal conductivity, making it an ideal insulating material for environments that require strict temperature control, such as food storage warehouses, pharmaceutical cold chains, and refrigerated transport vehicles. The PU sandwich panel line produces panels with high-density foam cores and airtight joints, ensuring minimal heat transfer and maximum energy efficiency. These panels also offer excellent moisture resistance, preventing condensation buildup that could damage stored goods.

The transportation industry also uses PU sandwich panels extensively. They are used in the manufacturing of RVs (Recreational Vehicles), shipping containers, train carriages, and box trucks, where their lightweight nature helps reduce fuel consumption, and their insulation properties maintain comfortable temperatures inside the vehicle. The high strength of the panels also ensures that they can withstand the rigors of transportation, such as vibration and impact.

Other applications include modular and prefabricated buildings, which are gaining popularity due to their fast construction times and cost-effectiveness. PU sandwich panels are a key component of these buildings, as they can be prefabricated in the factory and assembled on-site quickly. The production line's ability to produce panels in standard sizes ensures compatibility and simplifies the assembly process. Additionally, PU sandwich panels are used in cleanrooms, such as those in the pharmaceutical and electronics industries, due to their smooth, easy-to-clean surfaces and ability to maintain a controlled environment.

The role of the PU sandwich panel line in supporting these applications cannot be overstated. By producing high-quality, consistent panels tailored to each application's specific requirements, the line enables manufacturers to meet the diverse needs of their customers. For example, panels for cold storage require a higher foam density and thicker insulation, while panels for roofing may need a more rigid profile to withstand wind and snow loads. The production line's ability to adjust parameters to meet these requirements ensures that the panels perform optimally in their intended use cases.

Future Trends in PU Sandwich Panel Line Technology

The PU sandwich panel line industry is poised for further innovation, driven by global trends such as sustainability, digitalization, and the growing demand for energy-efficient construction materials. Several key trends are emerging that will shape the future of these production lines.

One of the most prominent trends is the integration of intelligent manufacturing technologies, such as the Internet of Things (IoT), artificial intelligence (AI), and big data analytics. IoT sensors can be installed throughout the production line to collect real-time data on parameters such as material flow, machine performance, and product quality. This data is then analyzed using AI algorithms to identify patterns, predict potential equipment failures, and optimize production processes. For example, AI can predict when a roll forming roller is likely to wear out, enabling proactive maintenance and reducing unplanned downtime. Big data analytics can also be used to optimize material usage, reducing waste and lowering production costs. These intelligent technologies will make production lines more efficient, reliable, and cost-effective.

Sustainability will continue to be a key driver of innovation. Manufacturers are increasingly focusing on reducing the environmental impact of their production processes and products. This includes the use of even more eco-friendly raw materials—such as bio-based polyols derived from renewable sources—and the development of fully recyclable sandwich panels. Additionally, production lines are being designed to be more energy-efficient, with features such as energy recovery systems that capture and reuse heat generated during the curing process. The adoption of circular economy principles, such as recycling waste materials from the production process back into the manufacturing cycle, will also become more widespread.

Another trend is the development of multifunctional panels, and production lines are evolving to support this. Future PU sandwich panels will integrate additional functionalities beyond insulation and structural strength, such as solar energy harvesting, sound absorption, and air purification. Production lines will need to be modified to incorporate the manufacturing of these multifunctional components—for example, integrating solar cell layers into the panel structure or adding specialized sound-absorbing materials to the foam core. This will expand the application scope of PU sandwich panels further, opening up new markets in sectors such as renewable energy and sustainable construction.

The miniaturization and modularization of production lines are also emerging trends, particularly to meet the needs of small and medium-sized manufacturers or regional markets. Modular lines can be easily assembled, disassembled, and transported, allowing manufacturers to set up production facilities closer to their customers, reducing transportation costs and lead times. These modular lines are also more flexible, enabling manufacturers to scale their production capacity up or down as needed, making them ideal for niche markets or small-scale projects.

Finally, advancements in material science will continue to improve the performance of PU sandwich panels and the efficiency of production lines. New foam formulations with even better thermal insulation, fire resistance, and durability will be developed, requiring production lines to adapt to handle these new materials. For example, the development of flame-retardant PU foams that meet stricter fire safety standards will require adjustments to the foam injection system to ensure proper mixing of the flame-retardant additives. Additionally, new metal alloys and surface treatments will enhance the durability and corrosion resistance of the outer facings, extending the lifespan of the panels.

Conclusion

The PU sandwich panel line is a testament to the advancements in modern manufacturing technology, combining precision engineering, automation, and chemical processing to produce high-quality composite panels that meet the diverse needs of the construction, transportation, and industrial sectors. Its core components—from the uncoiling system to the cutting and stacking system—work in harmony to deliver consistent, efficient production, while its technical advantages of precision, flexibility, and sustainability make it an indispensable tool for manufacturers worldwide.

As global demand for energy-efficient, sustainable building materials continues to grow, the PU sandwich panel line will play an increasingly important role. Future innovations in intelligent manufacturing, sustainability, and multifunctional panel design will further enhance the capabilities of these lines, driving the industry forward and enabling new applications. Whether in large-scale industrial projects, cold storage facilities, or modular homes, the PU sandwich panel line will remain a key enabler of modern, efficient, and sustainable construction practices for years to come.
