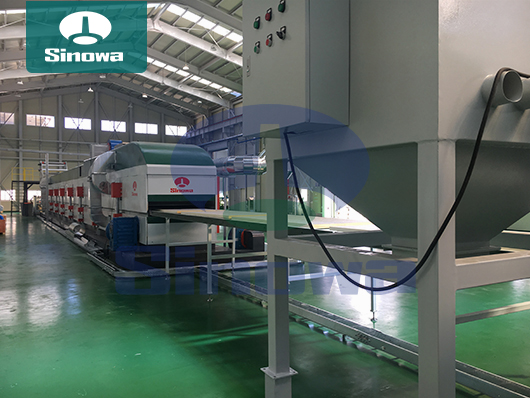

Phenolic Foam Production Line

Sinowa is phenolic foam production line manufacturer from china, phenolic foam production line has diversified and multifunctional production characteristics, which may produce products with different specifications such as PU, PF, PIR, etc. The surface material may be aluminum foil, colored steel, cement base cloth, kraft paper, non-woven fabrics, etc. The products are widely applied to such occasions as construction, decoration, pipeline ventilation, subway construction, etc. The phenolic foam production line is able to continuously and efficiently produce high-quality PU and Phenolic insulation boards.

We spare no efforts to improve our product quality and technological reliability by employing the most cutting-edge and the most reliable support and processes to make our products highly reliable and endurable. As a result, the phenolic foam production line of our soft layer insulation panels is highlighted by many perfect qualities. It is the core idea in Sinowa's product roadmap to surpass our competitors in terms of design philosophy, manufacture methods and service level, going for excellence and leading position and making constant improvement on our products and services, which is also our core value system to create efficiency and convenience for our customers.

Well-grounded on our solid strength as a renowned large-scale enterprise, Sinowa has a high starting point in developing industrial assembly lines. Based on the advanced science and technology introduced from within and without the country and supported by a great number of first-grade parts and components from the home and aboard, these phenolic foam production line have a high-level configuration of supporting products in terms of machinery, electrical control, hydraulic pressure, automatic measurement and tracking, and so on. This is a strong proof of our product’s reliable quality and high efficiency.

The first-class appearance design and excellent energy saving measures make it unnecessary for customers to additionally construct the heat preservation and isolation room for production around the clock throughout the year, so that the customers may save lots of resources and costs.

Modularized standard design and important parts machined with CNC machine tool make the production line have excellent quality assurance. Dependence on the man-made factors is eliminated. The operation is precision, with the highest operation speed of 30m/min. The phenolic foam production line has the world-class production efficiency.

The high performance and reliable multicomponent cyclopentane foaming technology and equipment of Sinowa may be also applied to the foaming process of the phenolic aldehyde board. Therefore, our customers may not only freely adjust the foaming matching according to the raw material, but also save lots of costs. Moreover, they are of significance for environmental protection.

Sinowa's phenolic foam production line is distinguished by its impressive performance of energy conservation. In each high point of energy consumption throughout the entire production line are implemented corresponding measures to considerably lower the consumption level. For example, the body of the lamination belt conveyer is covered with insulation panels in very reasonable structures, which doesn’t blemish the overall outlook but greatly increases the insulation performance. The entire phenolic foam production line is constantly optimized and improved so that the consumption of each power source is significantly reduced. The motor power of our lamination conveying system is only 3.0 kw, about 50% less than those of the same kind. All in all, the energy consumption of the whole phenolic foam production line equals 40% or even less of the equivalent lines in the market.

The phenolic foam production line of Sinowa adopts the most advanced concepts in the world to realize the modularized design with all the parts bolted together rather than welded. In standardized production, the parts can be dismantled and exchanged, so the production cycle is drastically shortened and the maintenance becomes by far easier. Through finite element analysis, the phenolic foam production line design is greatly optimized to realize modularization, digitization, and weight-minimalization.

Phenolic foam production line is a sophisticated and integrated manufacturing system designed for the continuous and efficient production of high-performance phenolic foam materials, which are widely recognized for their superior thermal insulation, flame retardancy, and chemical stability. This automated production system combines precise raw material proportioning, dynamic mixing, controlled foaming, gradient curing, and standardized post-processing procedures to convert liquid phenolic resin and auxiliary additives into uniform, high-quality foam products. As global industries increasingly focus on energy efficiency and safety performance in construction, industrial insulation, and cold chain engineering, phenolic foam has become a mainstream insulation material, driving the continuous technological optimization of its production line. Modern production lines abandon traditional intermittent manufacturing modes and adopt fully continuous automated operation, effectively improving production consistency and operational efficiency while reducing manual intervention and material waste. Each functional module of the line works in a coordinated manner to stabilize the internal cellular structure of foam products, ensuring stable physical properties and reliable product quality for diverse application scenarios.

The core operational foundation of a phenolic foam production line lies in its precise raw material proportioning and automatic feeding system, which serves as the primary guarantee for consistent product quality throughout mass production. The main raw materials involved in production include phenolic resin, blowing agents, surfactants, curing agents, and functional additives, each playing an irreplaceable role in the final foam forming process. Unlike manual batching methods that are prone to errors, modern production lines adopt fully automated metering units with high-precision sensing components, which can accurately control the dosage of each raw material according to preset process parameters. The system realizes sealed and continuous feeding of all materials, avoiding raw material volatilization and environmental contamination caused by open operation. Reasonable proportioning of raw materials directly affects the foaming magnification, cell uniformity, and structural compactness of phenolic foam. Excessive or insufficient dosage of curing agents will lead to incomplete polymerization or excessive brittleness of foam products, while improper blowing agent ratio will cause uneven pore size and reduced thermal insulation performance. The automated proportioning system maintains stable material ratios in long-term continuous operation, eliminating batch quality differences and laying a solid foundation for subsequent foaming and curing processes.

High-speed homogeneous mixing is a pivotal intermediate process in the phenolic foam production line, undertaking the task of fully integrating all proportioned raw materials to form a stable and uniform resin slurry. After accurate metering, all raw materials are transported to a sealed high-speed mixing unit through dedicated pipelines, where multi-dimensional circulating stirring and shear mixing are carried out. The mixing equipment is designed with optimized stirring structures to eliminate material stratification and local uneven mixing, ensuring that surfactants and curing agents are evenly dispersed in the phenolic resin matrix without agglomeration or precipitation. The entire mixing process is completed in a closed environment with real-time temperature monitoring to prevent premature chemical reactions of the slurry caused by excessive temperature, which would affect subsequent foaming effects. Moderate stirring speed and mixing duration are precisely controlled to balance mixing uniformity and slurry activity: insufficient mixing leads to inconsistent component distribution and defective foam structures, while over-stirring may destroy the activity of foaming components and reduce product foaming efficiency. After mixing, the homogeneous slurry maintains stable fluidity and reaction activity, which is continuously transported to the foaming molding unit to realize continuous and stable production.

Controlled closed foaming and preliminary molding are the core stages that determine the structural characteristics of phenolic foam products in the entire production process. The uniformly mixed resin slurry is evenly poured and laid on the base material through a precise spraying and pouring device, and then enters the sealed constant-temperature foaming cavity of the production line. Different from traditional open foaming technology that is easily affected by external temperature and airflow, the closed foaming cavity of modern production lines can stably control internal temperature and reaction environment, avoiding external interference on the foaming reaction. Under specific temperature conditions, the blowing agent gasifies and expands rapidly, generating a large number of tiny and uniform closed cells inside the slurry. Meanwhile, the curing agent triggers preliminary polymerization and cross-linking reactions of phenolic resin, enabling the expanded foam to initially form a stable three-dimensional cellular structure. The internal space of the foaming cavity can be adaptively adjusted according to the required thickness and density of finished products, meeting the production needs of foam boards with different specifications. This closed foaming mode effectively improves the uniformity of foam pore structure, enhances the compactness and surface flatness of products, and endows phenolic foam with excellent basic thermal insulation and pressure resistance.

Gradient temperature curing and polymerization treatment are key processes to stabilize the molecular structure and physical properties of phenolic foam, directly affecting the durability and mechanical strength of finished products. After preliminary foaming and molding, the semi-finished foam products are continuously conveyed to the multi-stage curing channel through an automated conveying system. Unlike ordinary foam materials that complete curing in a single high-temperature environment, phenolic foam requires gradual polymerization and cross-linking reactions under multi-stage temperature gradient conditions to avoid internal stress and structural deformation caused by rapid temperature changes. The curing channel is divided into multiple temperature zones with low, medium, and high gradient settings, allowing the foam to complete residual foaming, molecular chain cross-linking, and structural solidification step by step. In the low-temperature initial stage, the residual active components in the foam continue to react stably to supplement the uniform growth of cellular structures; in the medium-temperature transition stage, the resin molecular chains are fully cross-linked to enhance the overall structural compactness; in the high-temperature final stage, the internal molecular polymerization is completed to eliminate residual stress. This gradient curing process ensures that the phenolic foam forms a stable and dense closed-cell structure, effectively improving product dimensional stability, compressive strength, and long-term service performance.

Automatic trimming, cutting and shaping processes endow phenolic foam products with standardized dimensions and neat appearance, realizing the unification of product specifications in mass production. After completing curing and cooling, the continuous foam board conveyed from the curing channel has a continuous integral structure with irregular edges and redundant parts, which needs precise post-shaping treatment. The production line is equipped with integrated trimming and cutting units, including edge trimming devices, fixed-length cutting tools, and surface finishing mechanisms. The automated positioning system accurately identifies the edge range and target size of the foam board, realizing synchronous trimming of both sides to remove irregular edge materials with uneven density and incomplete structure. The fixed-length cutting device can freely adjust the cutting length according to production requirements, accurately cutting continuous foam blanks into finished products of specified sizes. Meanwhile, the surface finishing mechanism fine-tunes the flatness of the upper and lower surfaces of the foam board to eliminate bulges and depressions generated during molding. All cutting and trimming processes are completed through automated mechanical operation, which not only improves processing accuracy and efficiency compared with manual operation, but also avoids size errors and surface damage, ensuring consistent dimensional accuracy and appearance quality of each finished product.

Online quality inspection and intelligent fault diagnosis systems are important guarantees for the stable operation of phenolic foam production lines and the output of high-quality products. Modern production lines are equipped with full-process online detection modules, which conduct real-time monitoring and data collection on key indicators such as foam density, pore uniformity, product thickness, and surface flatness during the continuous production process. The detection system transmits real-time production data to the central control platform, which automatically compares and analyzes the data with preset process thresholds. Once abnormal indicators such as uneven foaming, insufficient curing, or dimensional deviation are found, the system will automatically trigger early warning prompts and fine-tune process parameters such as raw material proportioning, foaming temperature, and curing time in real time. In addition, the intelligent system can monitor the operating status of each mechanical unit of the production line, identify potential equipment faults such as pipeline blockage and motor abnormal operation, and realize pre-maintenance. This real-time inspection and intelligent adjustment mode effectively reduces the rate of defective products, ensures long-term stable operation of the production line, and greatly improves production yield and product qualification rate.

Environmental protection optimization and energy-saving operation design make modern phenolic foam production lines more adaptable to green manufacturing development trends. Traditional foam production processes often have problems such as raw material volatilization, waste residue accumulation, and high energy consumption. The upgraded phenolic foam production line adopts full-process sealed operation structures to effectively suppress the volatilization of auxiliary raw materials, reduce the discharge of harmful substances, and improve the on-site production environment. The production line is equipped with waste material recycling devices, which can collect and crush edge materials and defective products generated in the cutting process, and reuse them in subsequent production links after treatment, realizing resource recycling and reducing material waste. In terms of energy consumption control, the production line adopts heat preservation and heat recovery structures in the foaming and curing temperature zones, which recycle waste heat generated during heating to preheat raw materials and conveying equipment, effectively reducing overall energy consumption. While ensuring high-efficiency and high-quality production, this green and energy-saving design reduces the production cost and environmental impact of phenolic foam products, making the entire production process more environmentally friendly, efficient and sustainable.
